EPSON P20070

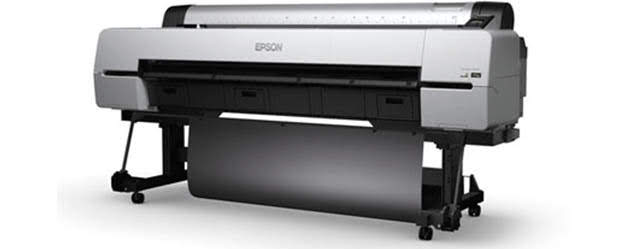

The Epson SureColor SC-P20070 ( Epson P20070 ) is Epsons next generation, high performance, 64 high speed production printer. Equipped with PrecisionCoreTM MicroTFP printhead and UltraChromeTM PRO ink, experience stunning print quality at affordable running costs.
Epson P20070 ,64-inch high production printer
New PrecisionCoreTM MicroTFP printhead utilising 8000 nozzles, for print speeds up to 17.5 m2/h
Epson UltraChromeTM PRO archival ink technology with four levels of grey
New media feeding system to upkeep high print quality and reduce downtime.
Ideal for high-volume commercial printing.
Remarkable Productivity
Epson’s PrecisionCore MicroTFP printhead utilises 8000 nozzles, for print speeds up to twice as fast as our previous generation. Enjoy fast production turnaround with class-leading speeds of up to 17.5 m2/h*.
The PrecisionCore MicroTFP printhead is developed using 10 individual PrecisionCore "blades". Each "blade" has two rows – one for each colour – using 400 nozzles each across a 1.32"" width. When combined, the final printhead array prints using 800 nozzles per colour over a 2.64"" print width.

*Based on 6-pass printing for high quality production, on photo media.
Exceptional Print Quality at Affordable Costs
Enjoy peace of mind for your business with Epson's commitment to product quality and the provision of a one-year warranty, inclusive of the printhead.

Experience fast and ultra reliable high-volume printing with unique combination of Epson’s printhead technology and UltraChrome PRO archival ink technology.
Consistent Vibrant Quality
Produce exceptional colour prints that last up to 200 years, along with four levels of grey for accurate transitions with very low grain, even at the fastest print modes, thanks to Epson UltraChrome PRO archival ink technology.
Designed for Convenience
Easily manage print layouts and colours with our industry-leading standard RIP software. It provides easy of use with access to all major functions. This is coupled with high-precision media feed technology, including a new camera-based paper feed stabiliser and media inductive roller system, to ensure the printer operates smoothly even when unattended.

Printing Technology:
Black Nozzle Configuration:Black colour ink : 4,000 nozzles (PK,MK,DGY,GY,LGY 800 nozzles each colour
Colour Nozzle Configuration:Colour ink : 4,000 nozzles (C, VM, Y, LC, VLM 800 nozzles each colour)
Print Condition:Nozzle Verification system
Print Direction:Bi-directional printing, uni-directional printing Auto Head Alignment technology
Minimum Ink Droplet Volume:3.5pl
Printing Method:PrecisionCoreTM MicroTFP Head Epson Variable-Sized Droplet Technology
Maximum Resolution:2400x1200 dpi
Ink System:
Ink Type:All Pigment ink for application 'Epson UltraChromeTM Pro Ink'
Colours:Cyan, Vivid Magenta, Yellow, Photo Black, Matte Black, Dark Grey, Grey, Light Grey, Light Cyan, Vivid Light MagentaInk Pack Capacity:700ml / 110ml(Bundled)
Print Quality:
Maximum Resolution:2400x1200 dpi
Environmental Characteristics:
Temperature:Operating: 10C - 35C Storage: -20C - 40CHumidity:Operating: 20% - 80% (no condensation) Storage: 5% - 85% (no condensation)
Line Accuracy:0.2% of the specified vector length or 0.26mm
Ink Capacity:
Ink Capacity:700ml/350ml/ 110ml(Bundled)
Dimensions / Weight:
Dimension (WxDxH):Store : (W) 2,415mm_(D)760mm_(H)1,145mm Printing : (W) 2,415mm_(D)976mm_(H)1,145mmWeight:171kg
Electrical Characteristics:
Voltage:AC100-240V 50/60HzRated Current:5APower Consumption:Operating: Approx. 95W Sleep :Approx. 2.8W *Interface is 1000BASE-T Power off (Stand-by): Less than 0.5W
Utility Software:
PC Software:LFP Accounting Tool (Job monitoring, consumable cost tracking) Epson Print Layout (Web download) HDD Utility software (Web download)Printer Web function:'Remote Manager' HDD utility -Control of HDD functions
Software from Web download:
PC Software :LFP Accounting Tool (Job monitoring, consumable cost tracking) Epson Print Layout (Web download) HDD Utility software (Web download)
System Requirements:Windows XP/Vista/7/8/8.1 (32/64bit) or later CPU : Core 2 Duo 3.05GHz Memory : Memory more than 1GB HDD : Free space more than 32GB
Internal Memory:1.5GB
Auto Cutter Spare Blade:C13S210040Automatic Take-up Reel:C12C932201Hard Disk Unit:Capacity is 320GB C12C848031Adobe Postscript 3 Expansion Unit:C12C891131Additional Roll Media Adapters:C12C932231
Interface:Hi-Speed USB, 1000BASE-T(Recommend)/100BASE-TX
Draft Mode:300 x 300dpi, 0.4 minutesNormal Mode:300 x 600dpi, 1.0 minutesFine Mode:600 x 600dpi, 1.9 minutesSuper Fine Mode:1200 x 1200dpi, 3.7 minutesSuper Photo Mode:2400 x 1200dpi, 5.6 minutes
Ink and Consumables:
Maintenance Box :C13T619300Cleaning Stick:C13S090013Inks:C13T909 Series UltraChrome PRO 350ml C, VM, Y, PK, MK, DGY, GY, LGY, LC, VLM C13T809 Series UltraChrome PRO 700ml C, VM, Y, PK, MK, DGY, GY, LGY, LC, VLM
